feat(logi): support HID++ button gestures - #1

Open
LJAYi wants to merge 2 commits into
landn172:feat/mouse-gesturefrom
LJAYi:feat/m720-gesture-bindings
Open

feat(logi): support HID++ button gestures#1
LJAYi wants to merge 2 commits into
landn172:feat/mouse-gesturefrom
LJAYi:feat/m720-gesture-bindings

Conversation

@LJAYi

@LJAYi LJAYi commented Aug 11, 2026

Copy link
Copy Markdown

Summary

  • route Logitech HID++ button events through the existing gesture state machine
  • support the M720 MultiPlatform Gesture button with four movement directions and scroll-wheel combos
  • keep the gesture button's ordinary click binding when no gesture threshold is reached
  • register actionable gesture triggers with the Logi usage/diversion system
  • move gesture configuration into expandable rows in the Buttons preferences pane
  • fix rule deletion, duplicate recording feedback, and M720 back/forward button actions

Implementation notes

HID++ button events do not carry a CGEvent, so GestureProcessor now accepts the shared InputEvent representation and keeps replay context optional. Native mouse triggers still replay their original click when appropriate, while HID++ triggers fall back to the configured button action.

Only enabled bindings with a real action reserve and divert a Logitech CID. Trigger modifiers are normalized before persistence and comparison so state flags such as Caps Lock cannot create visually identical duplicate rules.

Testing

  • tested on a Logitech M720 with the MultiPlatform Gesture, Back, and Forward buttons
  • verified gesture-button click plus up/down/left/right movement actions
  • scripts/qa/lint-logi-boundary.sh
  • 181 focused tests across GestureProcessorTests, ButtonBindingTests, LogiUsageBootstrapTests, and InputProcessorTests
  • unsigned Debug build succeeds with CODE_SIGNING_ALLOWED=NO

Screenshot

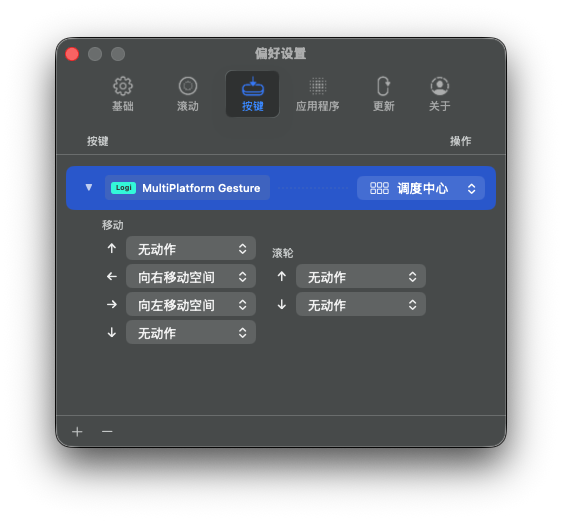

M720 inline gesture configuration

LJAYi added 2 commits August 12, 2026 02:24
Route Logitech HID++ button events through the gesture state machine, register actionable gesture CIDs for diversion, and preserve ordinary button actions for gesture-button taps. Normalize persisted triggers so state flags do not create duplicate rules.
Replace the separate bindings/gestures modes with disclosure rows, keep the standard add/remove controls usable, and base duplicate feedback on existing button rules. Add a focused storyboard regression test for expansion and deletion.
@LJAYi

LJAYi commented Aug 11, 2026

Copy link
Copy Markdown
Author

I tested this with a Logitech M720 and added HID++ support for its MultiPlatform Gesture button, including directional gestures, inline configuration, and Back/Forward button fixes.

If these changes are incorporated into Caldis#922, I’d appreciate it if my commit authorship could be preserved when merging. Thanks!
